GALLERY
HIGHLIGHT FEATURES
-

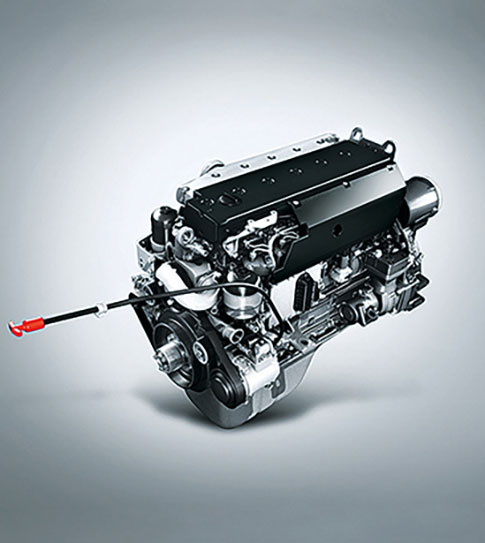

High Performance Engine with Large Fuel TankFuel Saver with maximum performance as well as less fatigue create more driver productivity -
Brake System with Brake Override SwitchFull air brake with ABS, most reliable brake and safety. Double steps auxiliary brake as maximum safety standard. Saver brake lining means lower maintenance cost and higher uptime. -
Stabilizer control vehicle roll with higher C.G.For greater safety and stability -
Cruise ControlAutomatically controls the speed of the truck as required by the driver and reduced fatigue in long-haul driving
Air Suspension SeatAir suspension seat for driver shake- absorber -
Intelligent Instument Cluster with Variable Green BandThe LED panel makes all necessary information easily visible
- Fuel consumed
- Trip mileage
- Average Speed
- Suitable engine speed drive for Gear shifting
Variable green band indicator shows the driver the gear and speed required to minimize fuel consumption -
LED day time running lightFor greater visibility in all types of light and weather conditions
FEATURES
-
New DoorImproved aesthetics with good fit -
Music systemSystem with USB port, AUX & FM radio brings music & news at the finger tips of driver. Makes FUSO a home away from home -

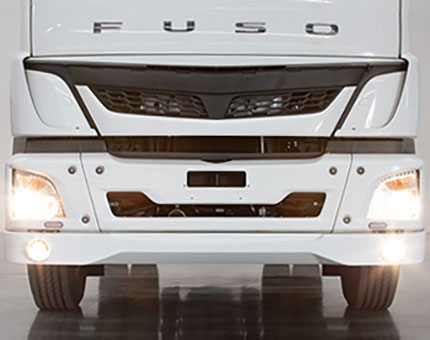

New Front FaceImproved aesthetics with good fit -
Power Windows with switch position change & Central LockFor improving driver comfort & ergonomics -
Fully Trimmed CabImproved Aesthetics with good fit -
New Seat fabric & PatternAir suspension driver seat promises a comfortable & productive drive -
Front Spoiler with Aux lampImproved aesthetics with good fit
SPECIFICATION
| WB |
| Loading Span |
| GVW |
| Kerb Wt |
| Pay Load |
| Engine Capaicty |
| Max Power |
| Max Torque |
| Fuel tank Capacity |
| Gearbox |
| Rear Axle Ratio |
| Tire Size |
| Gradeability |
| Brake System |
| Auxiliary Brake |
| Stabilizer |
| PTO Transmission |
| FJY4WJ1RDHB | FJY4WL1RDHB | FJY4WP1RDHB |
| 4,500 mm | 5,100 mm | 6,000 mm |
| 5,500 mm | 6,500 mm | 7,850 mm |
| 15T | 15T | 15T |
| 5.91T | 6.18T | 6.22T |
| 9.09T | 8.82T | 8.78T |
| 6373 cc | 6373 cc | 6373 cc |
| 170 kW / 230 PS @ 2200 rpm |
170 kW / 230 PS @ 2200 rpm |
170 kW / 230 PS @ 2200 rpm |
| 810 Nm @ 1200-1600 rpm | 810 Nm @ 1200-1600 rpm | 810 Nm @ 1200-1600 rpm |
| 255 L | 255 L | 255 L |
| 1st = 6.696 / 6th = 0.728 | 1st = 6.696 / 6th = 0.728 | 1st = 6.696 / 6th = 0.728 |
| 5.875 | 5.875 | 5.875 |
| 295 / 80 R22.5-16PR | 295 / 80 R22.5-16PR | 295 / 80 R22.5-16PR |
| 41.0% (22.3°) | 41.0% (22.3°) | 41.0% (22.3°) |
| Full Air with ABS | Full Air with ABS | Full Air with ABS |
| Engine Brake + Exhaust Brake | Engine Brake + Exhaust Brake | Engine Brake + Exhaust Brake |
| FR & RR | FR & RR | FR & RR |
| Standard | Optional | Optional |
Remark :
- Details are provided by the manufacturer (R&D) conforming to vehicles inspection standard and not include additional accessories.
